LILYGO® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA

Qty:

type: Unknown Type

Vendor: Astanda

SPECIFICATIONS

433MHz CH9102F: Q134

433MHz CP2104: H253

868MHz CH9102F: Q168

868MHz CP2104: H240

915MHz CH9102F: Q211

915MHz CP2104: H252

923MHz CH9102F: Q388

923MHz CP2104: -

Brand Name: lilygo

Certification: None

Compatible Audio & Video Equipment Style: Amplifier

Dimensions (WxHxD)): 60*30*20mm

Hign-concerned Chemical: None

Model Number: LoRa32 V2.1_1.6.1 version

Origin: Mainland China

Package: Yes

SX1276 915MHz TCXO: Q430

Weight: 20g

We have enhanced the capabilities of the TTGO LoRa V2.1 board by adding an SMA antenna.

Additionally, we have modified the power switch interaction mode for improved performance. The SMA antenna improves signal transmission.

More information

Github:

LILYGO-LoRa-Series-Github

Cooperate-Paxcounter-Github

Cooperate-Disaster Radio-Official

Cooperate-Disaster Radio-Github

Cooperate-Disaster Radio V0.2.0-Github

⚠️Notice:The shipping list does not include battery and SD card.

⚠️Note:

The Meshtastic firmware is not adapted to the TCXO version yet.

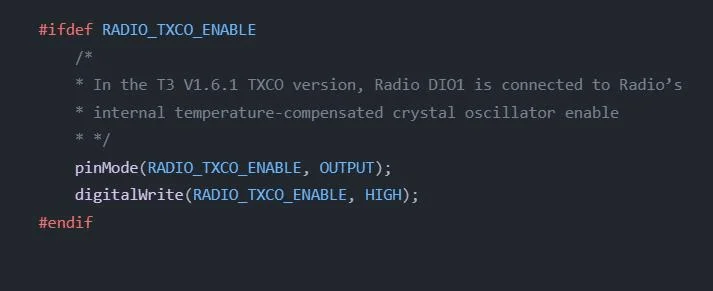

You can add the below sentences in the source codes to make it work.

Or you can ask in the github or community of Meshtastic:

LoRa32 Specifications
MCU	ESP32
Flash	4MB
PSRAM	8MB
Wireless Connectivity	Wi-Fi 802.11
Wireless Connectivity	Bluetooth V4.2 + Bluetooth LE
Programming Platform	Arduino-ide、Micropython
Onboard Functions	TF Card Slot USB or 3.7V Lipo Battery Power Supply Battery Switch
Onboard Button	Reset + Boot
