PowMr 6.2KW Hybrid Solar Inverter 48V 220V Off grid Inverter With MPPT 120A Charger Work Without Battery Parallel Up to 12 Units

$554.61 USD

~~$831.91 USD~~ $554.61 USD

Sale Sold out

Color 6.2KW with WIFI 6.2KW without WIFI

Output Voltage Parallel Version

Ships From Russian Federation United States CHINA GERMANY Mexico

Quantity

SPECIFICATIONS

Battery Type: Lead-acid, lithium and no battery

Battery Voltage: 48V

Brand Name: PowMr

Certification: CE

Feature: Can achieve 3-phase output

Hign-concerned Chemical: None

Is Smart Device: YES

Max PV Input: 60V-500V

Maximum PV Input Current: 27A

Maximum PV Input Power: 6200W

Model Number: POW-HVM6.2K-48V-LIP

Origin: Mainland China

Output Current: MPPT 120A

Output Frequency: 50/60Hz

Output Power: 1 - 200KW

Output Type: SINGLE

PV Maximum Input Voltage: 500V

Parallel Capability: Up to 12 units

Size: 60.00*39.50*22.00cm

Weight: 10.5kg

is_customized: Yes

PowMr 6.2KW Hybrid Solar Inverter 48V 220V Off grid Inverter With MPPT 120A Charger Work Without Battery Parallel Up to 12 Units

Description:

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features：

* Pure sine wave inverter

* Inverter running without battery

* Built-in MPPT solar controller

* Configurable input voltage range for home appliances and personal computers via LCD setting

* Configurable battery charging current based on applications via LCD setting

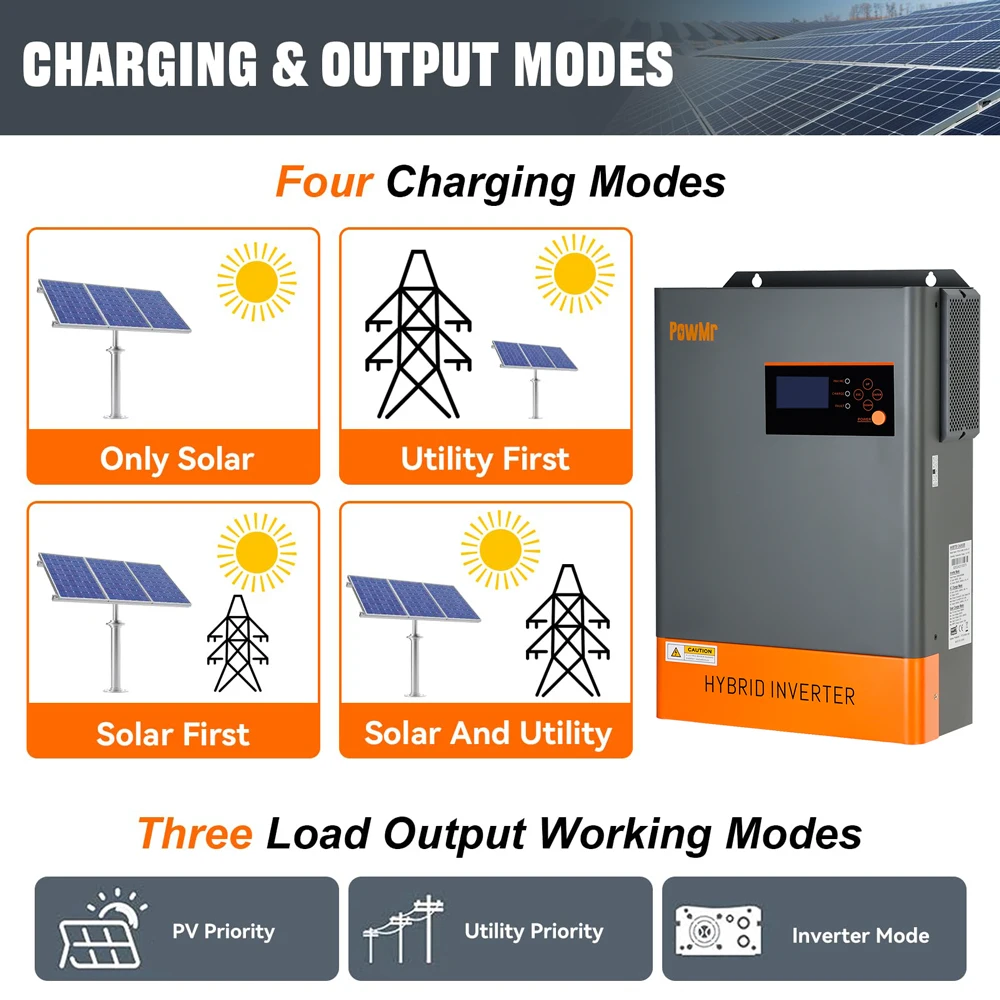

* Configurable AC/Solar Charger priority via LCD setting

* Compatible to mains voltage or generator power

* Auto restart while AC is recovering

* Overload/ Over temperature/ short circuit protection

* Smart battery charger design for optimized battery performance

* Cold start function

Note:

* For European Union customers, You can select shipping from China, We will ship from EU warehouse. You don't pay extra money. The estimated delivery is 3-7 days.

* This is a wide voltage Hybrid inverter. Solar panel input voltage must be higher 150V so that can start up the inverter to work.

* This Hybrid Inverter supports the WIFI function,but need to buy the WIFI module connect to APP so that can monitor.

* If choose with Parallel function model, the parallel kit already built in inside, don't need you to buy and install separately.

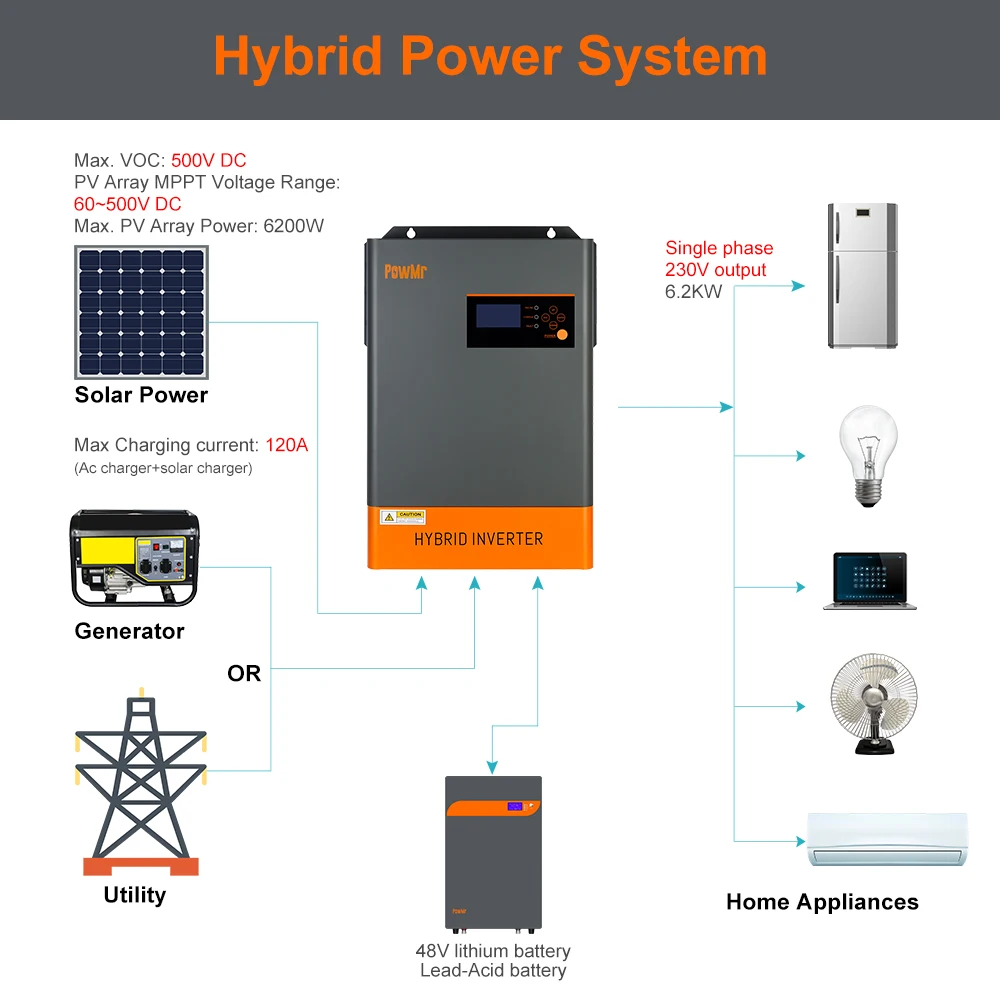

Basic System Architecture:

The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:

1.Generator or Utility.
2.PV modules (option)
Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.

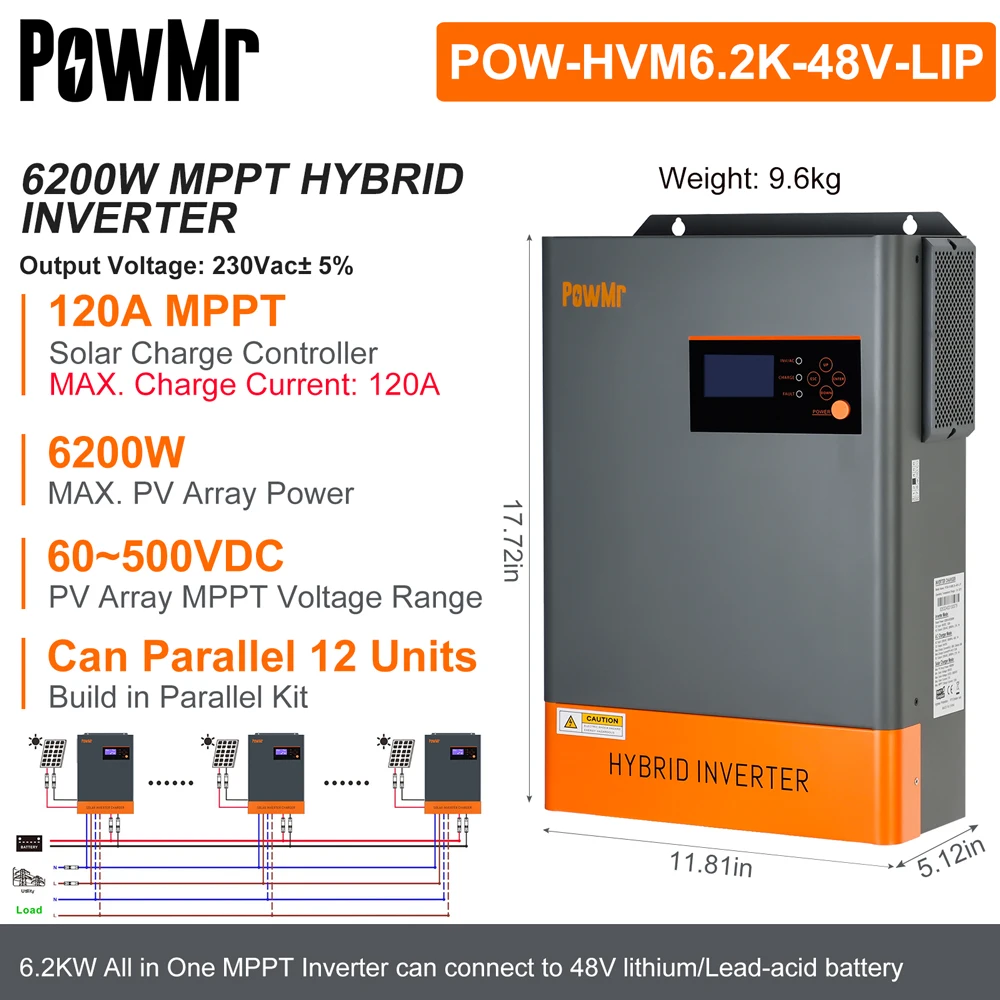

Model Number	POW-HVM6.2K-48V-LIP
Charging Mode	MPPT
Rated Load Power	6200W
Systerm Voltage	48V
Output Voltage	230V土5%

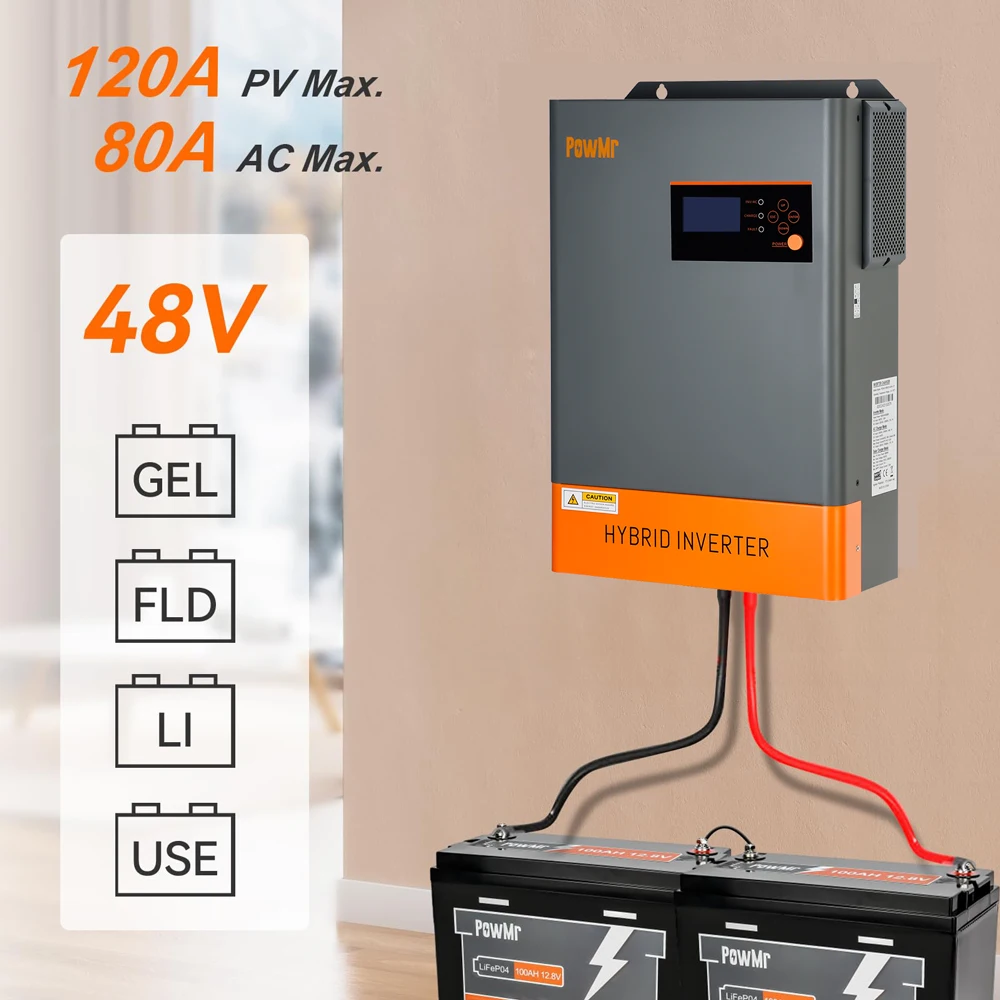

Battery Type	Lead-acid,Lithium and No Battery
Surge Power	11000VA
Maximum PV Input	500V
Maximum MPPT Charging Current	120A
Maximum PV Input Current	27A
Maximum PV Input Power	6200W
Optional Accessories	Wifi Module

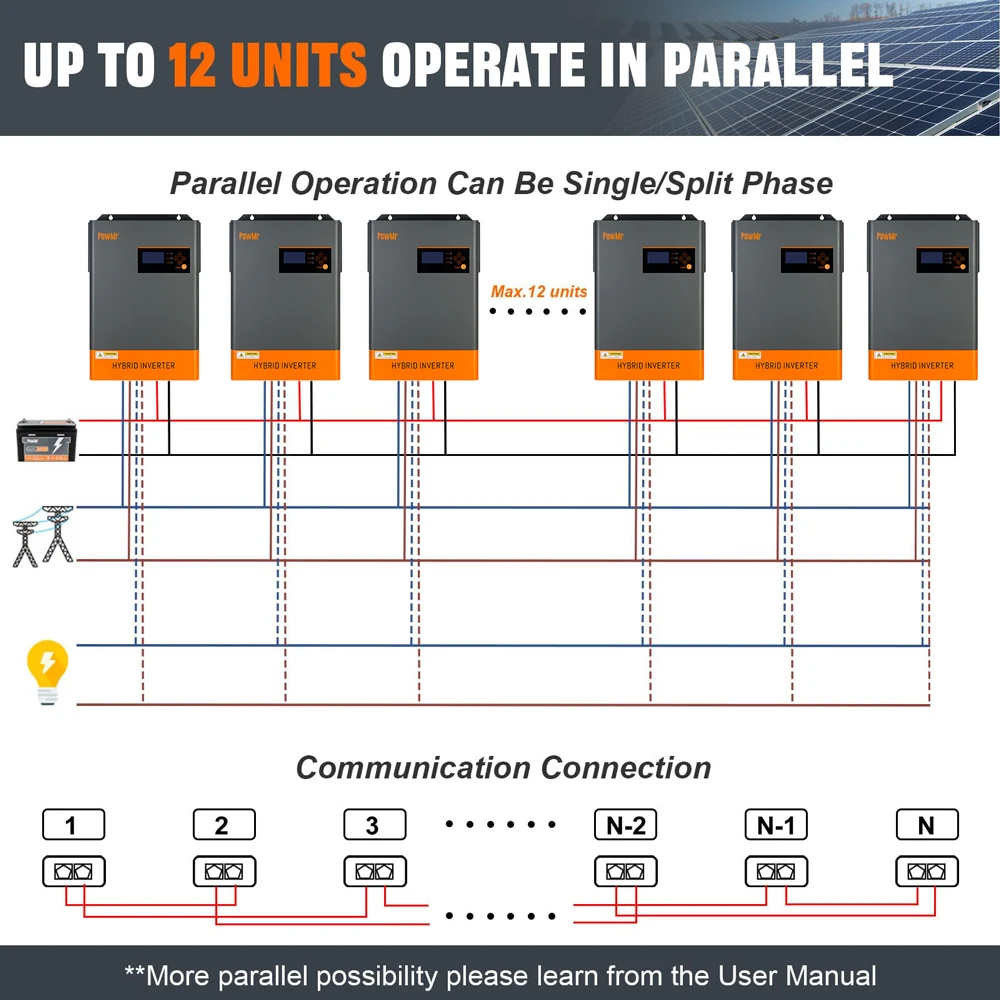

Paraller Capability	Yes，Up to 12 Units
Paraller Capability	Can achieve three-phase output
Weight(Kg）	10.5
Dimension(MM)	600X395X220
