SPECIFICATIONS

Accessory Type: Battery Accessories

Brand Name: CHANGELIN

Certification: None

Hign-concerned Chemical: None

Model Number: BMS

Origin: Mainland China

range 1: 7s to 16s

range 2: 8s to 20s

range 3: 8s to 22s

range 4: 17S to 24S

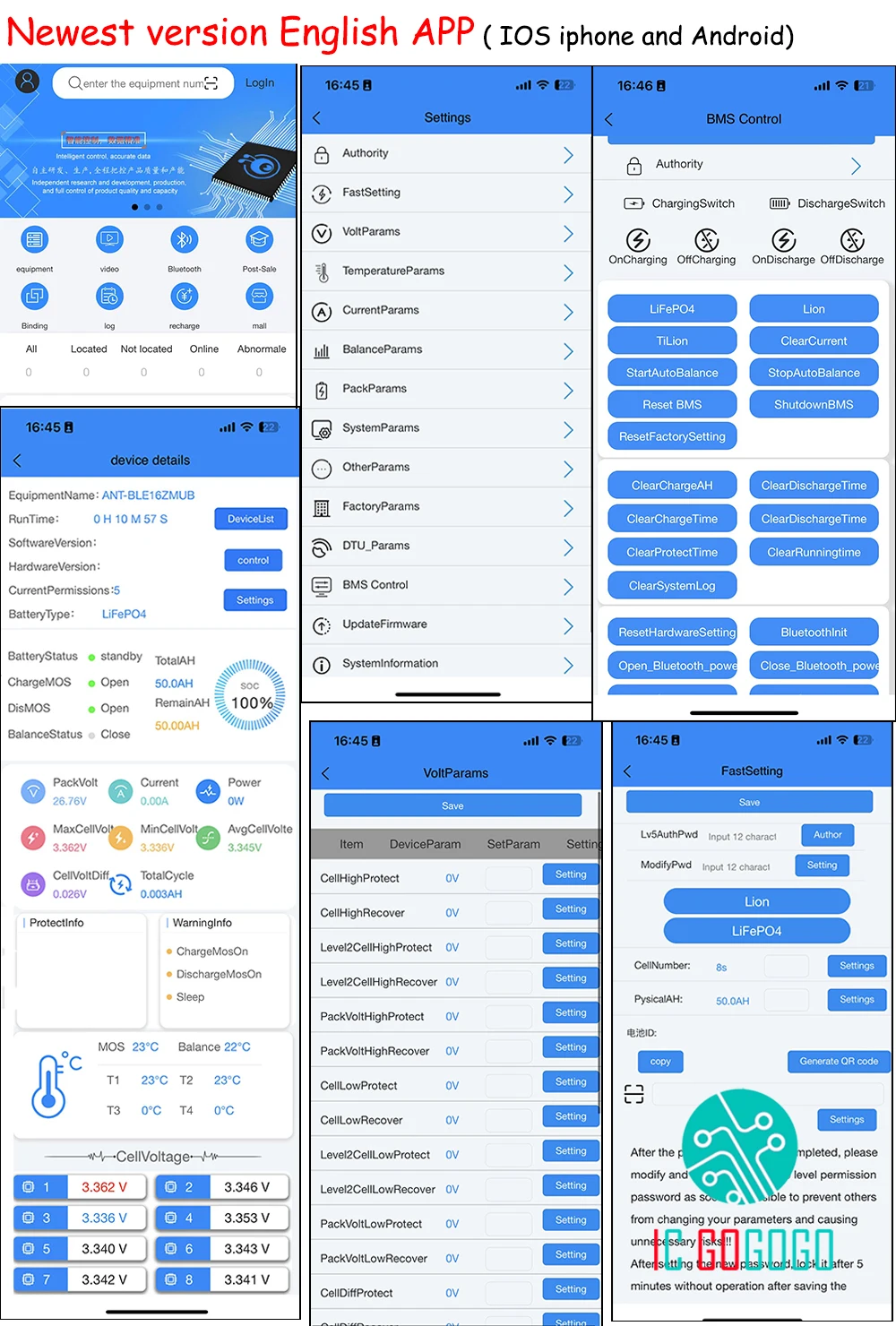

Have newest English APP now !!! it is bluetooth built-in .

newest version !! Have English APP of iPhone IOS / Android , and computer software :) ! please contact us for newest app and other documents before you use !!!

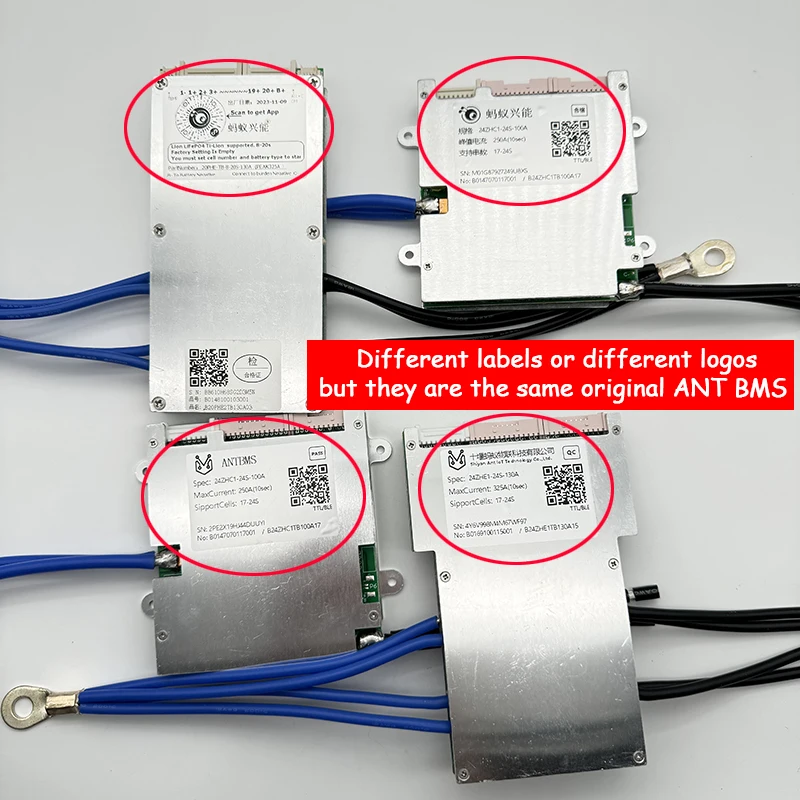

If you need other ANT BMS models, contact us ~

And BMS also support computer software ( you need to buy usb adapter separately )

more functions are developing now ~

the price is for 1pcs .

Some countries we can ship from the Spain warehouse， some countries can only ship from China warehouse . Ship from Spain product price is higher than ship from China , if you mind this , you can choose ship from China .

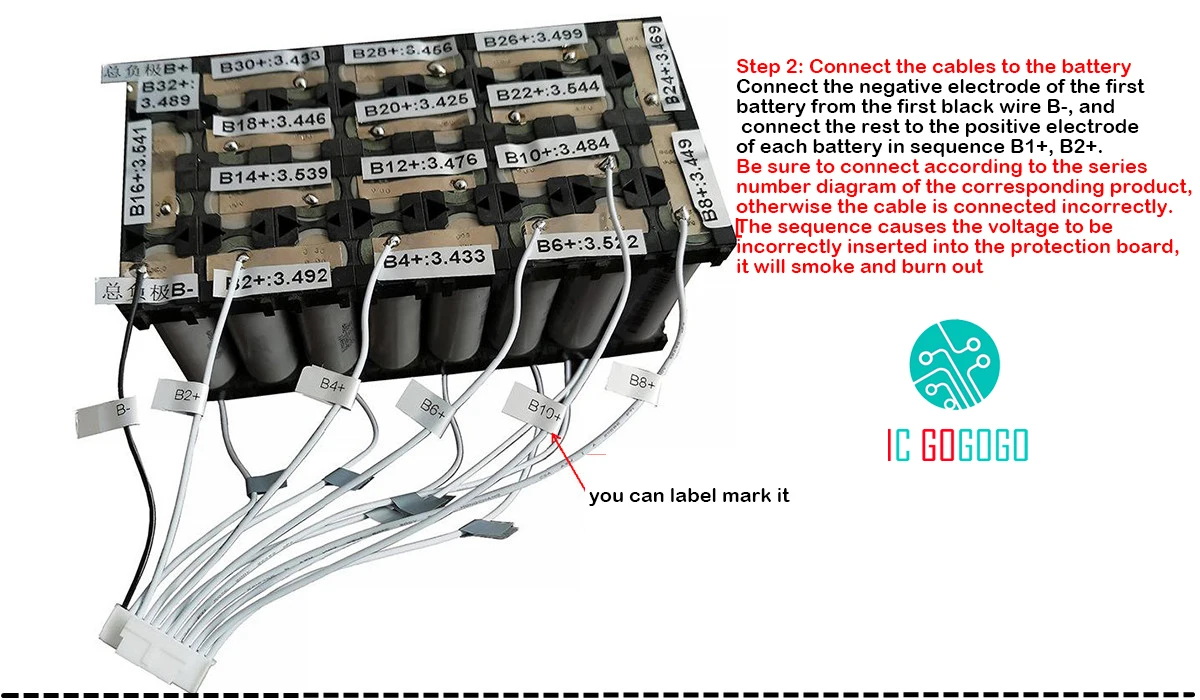

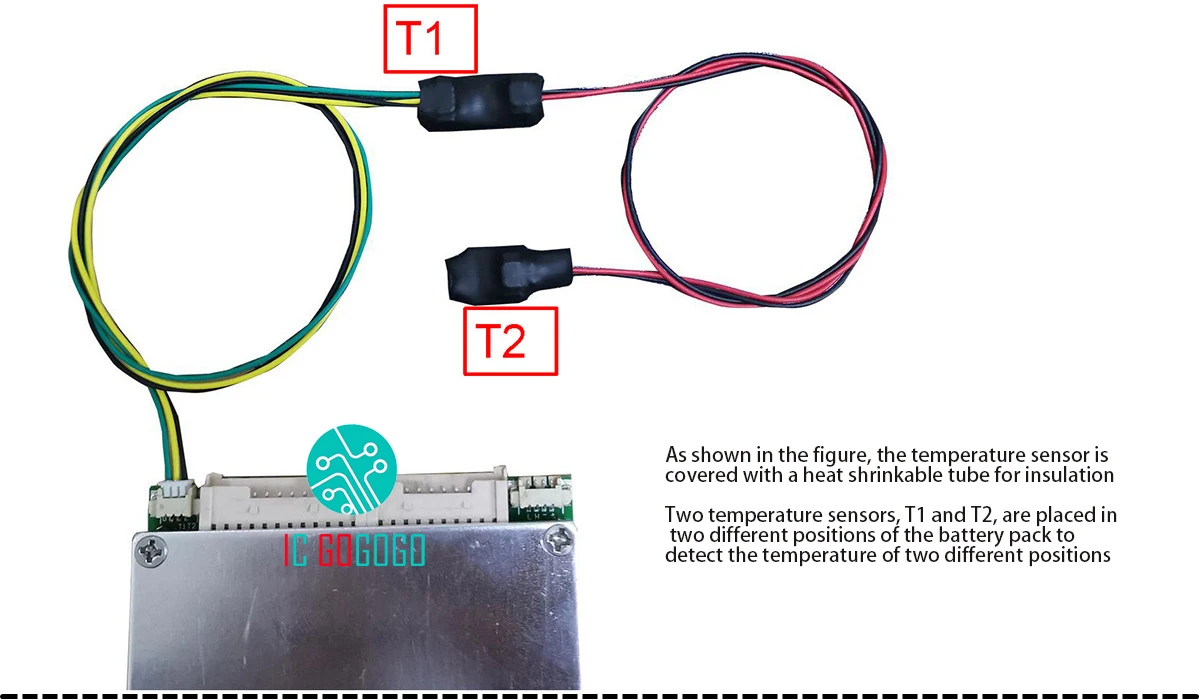

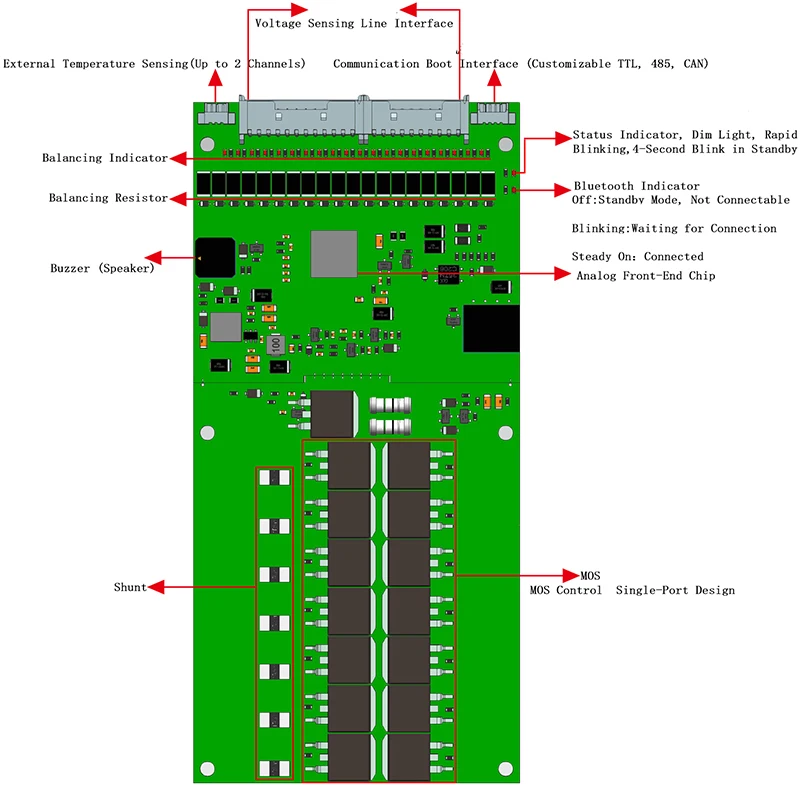

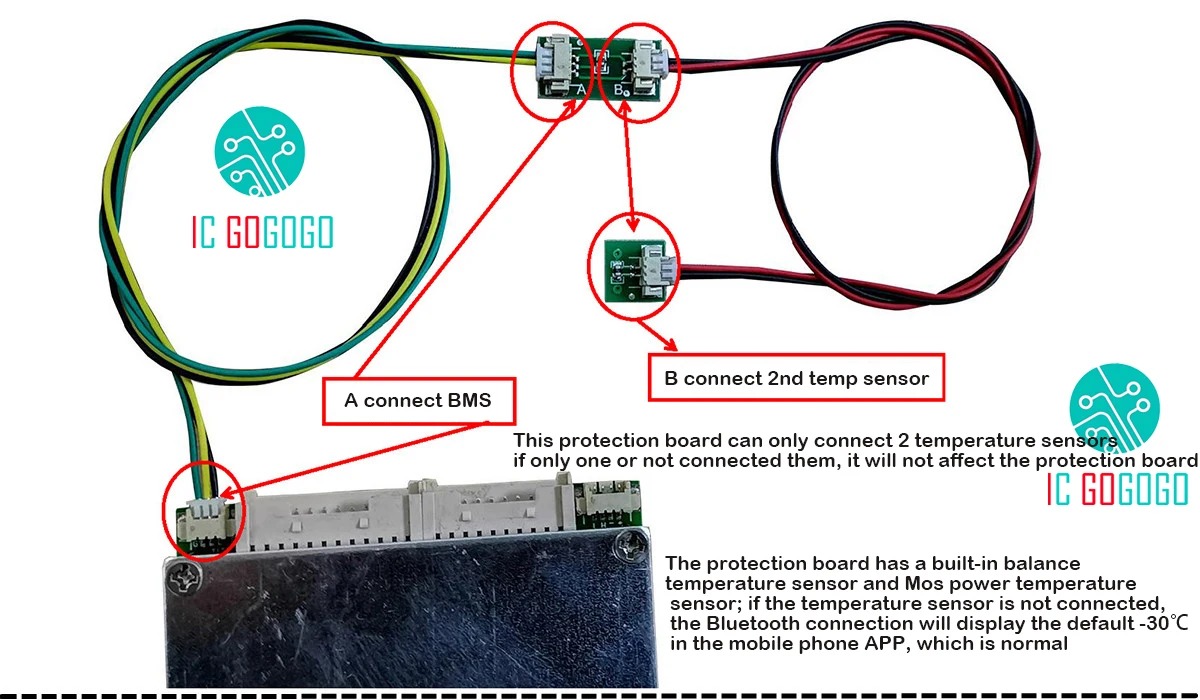

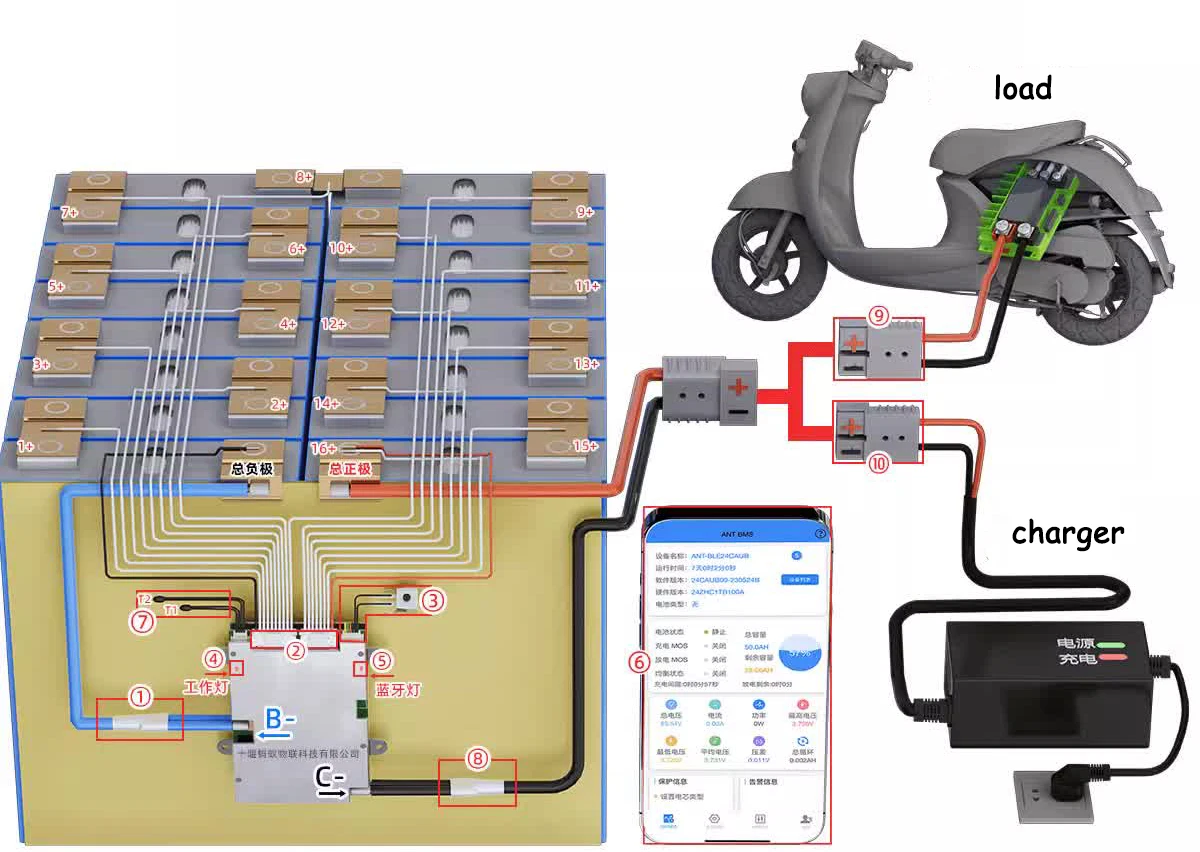

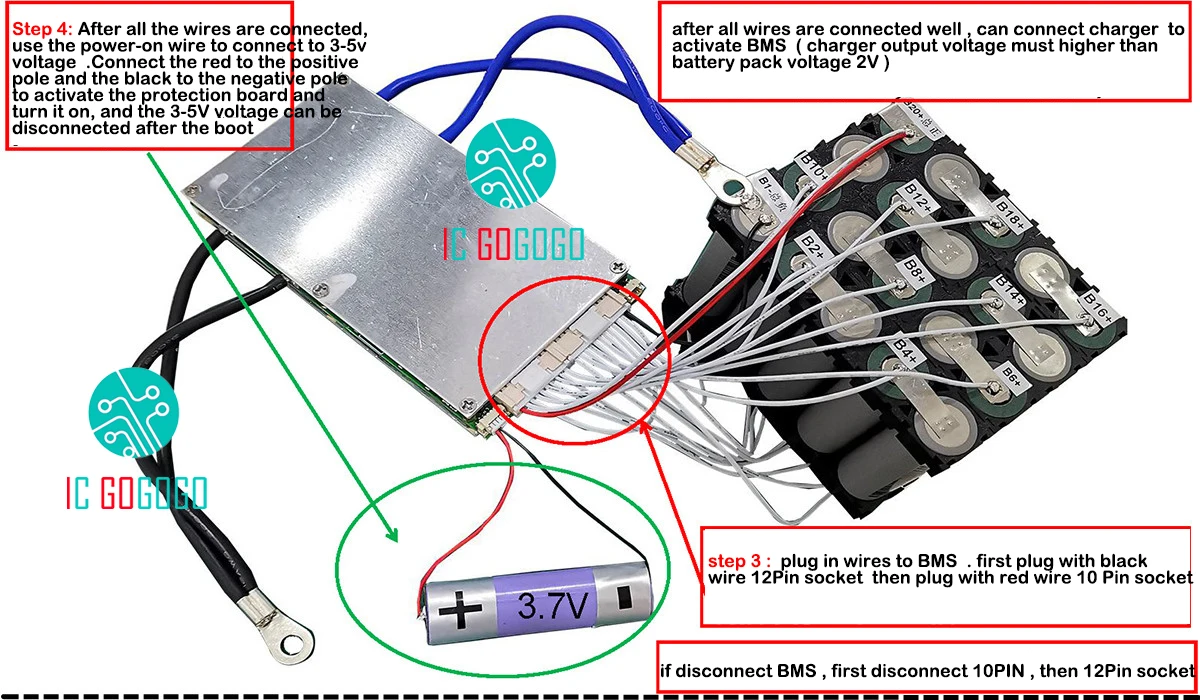

BMS include : BMS protection board + wires and connectors to batteries + temperature sensors + power on wires .

check each options carefully before you place order :

420A cont 1050A peak version : continuous discharge 420A; peak discharge 1050A BMS .

400A cont 1000A peak version : continuous discharge 400A; peak discharge 1000A BMS .

230A cont 575A peak version: continuous discharge 230A; peak discharge 575A BMS .

220A cont 550A peak version: continuous discharge 220A; peak discharge 550A BMS .

170A cont 425A peak version: continuous discharge 170A; peak discharge 425A BMS.

130A cont 325A peak version: continuous discharge 130A, peak discharge 325A BMS.

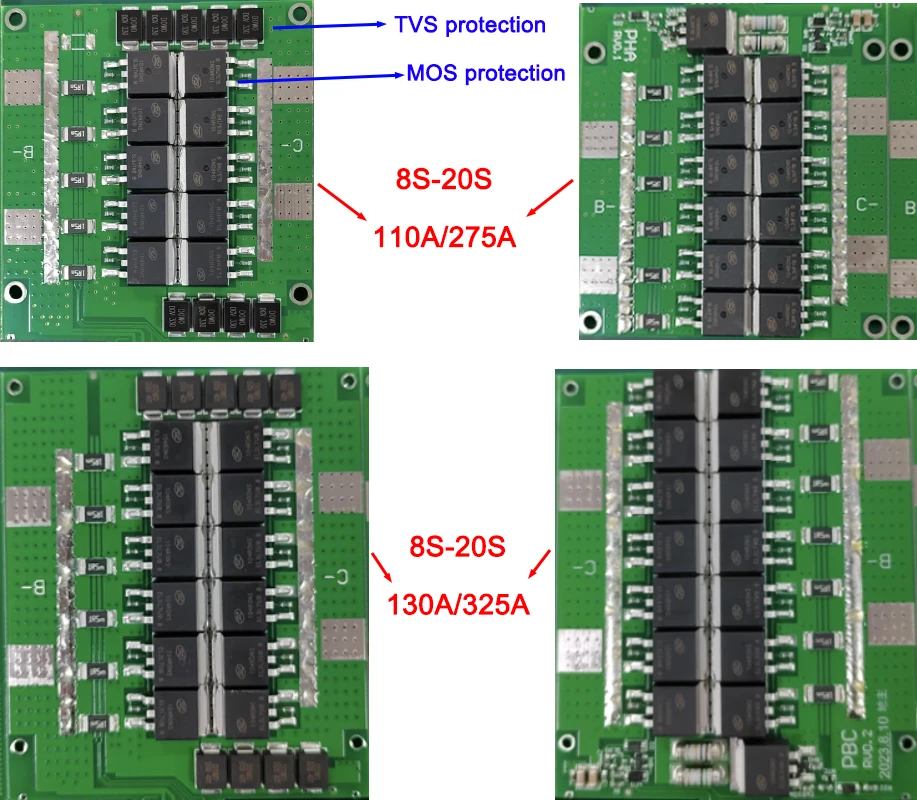

110A cont 275A peak version : continuous discharge 110A, peak discharge 275A BMS.

80A cont 200A peak version , continuous discharge 80A; peak discharge 200A BMS.

40A cont 100A peak version , continuous discharge 40A, peak discharge 100A BMS .

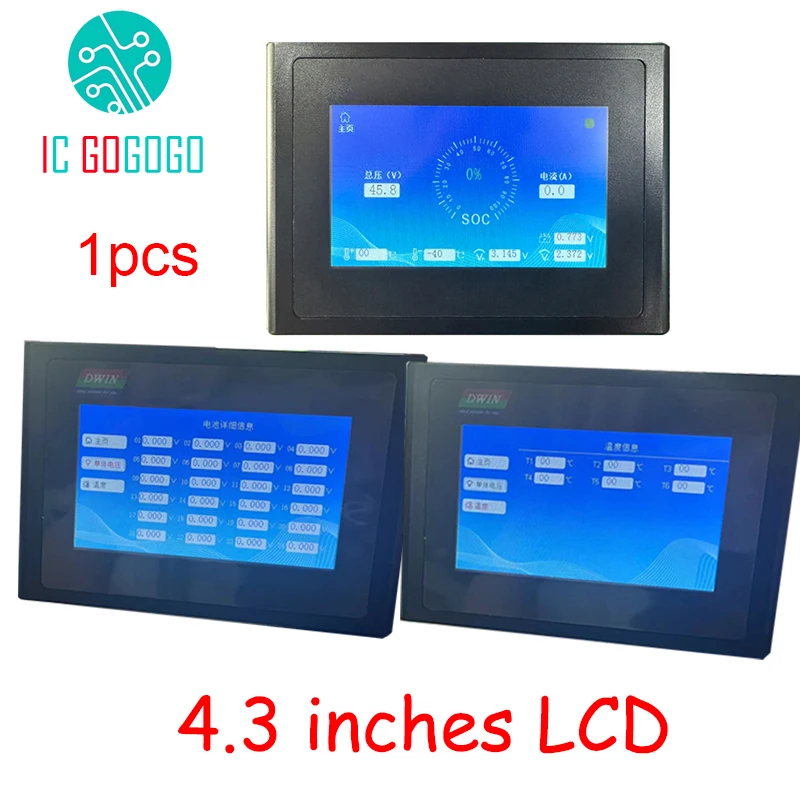

4.3 inch LCD: Only 4.3 inch LCD display screen . don't include BMS .

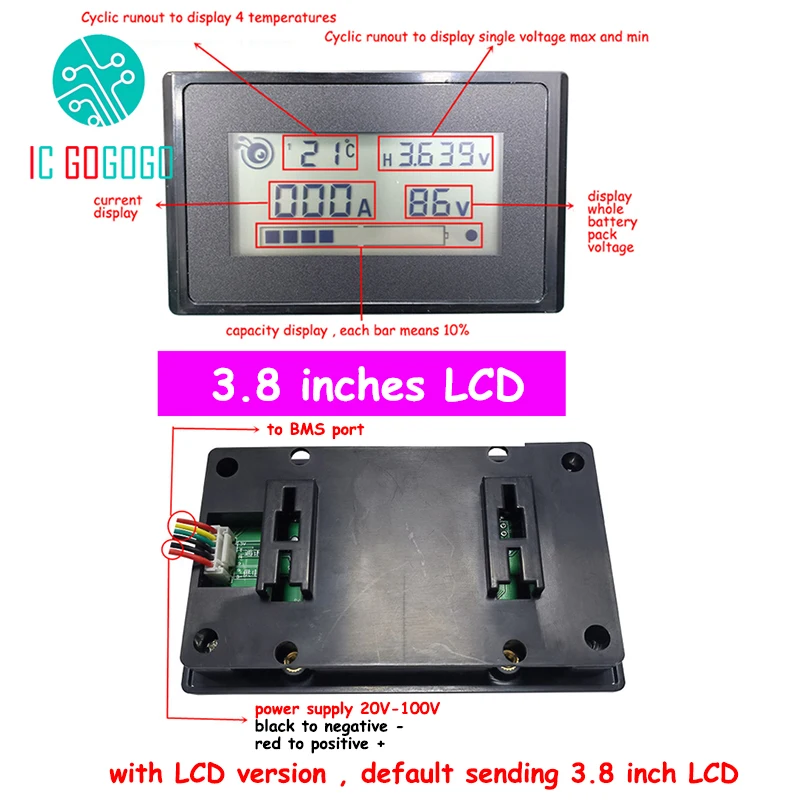

3.8 inch LCD: Only 3.8 inch LCD display screen . don't include BMS .

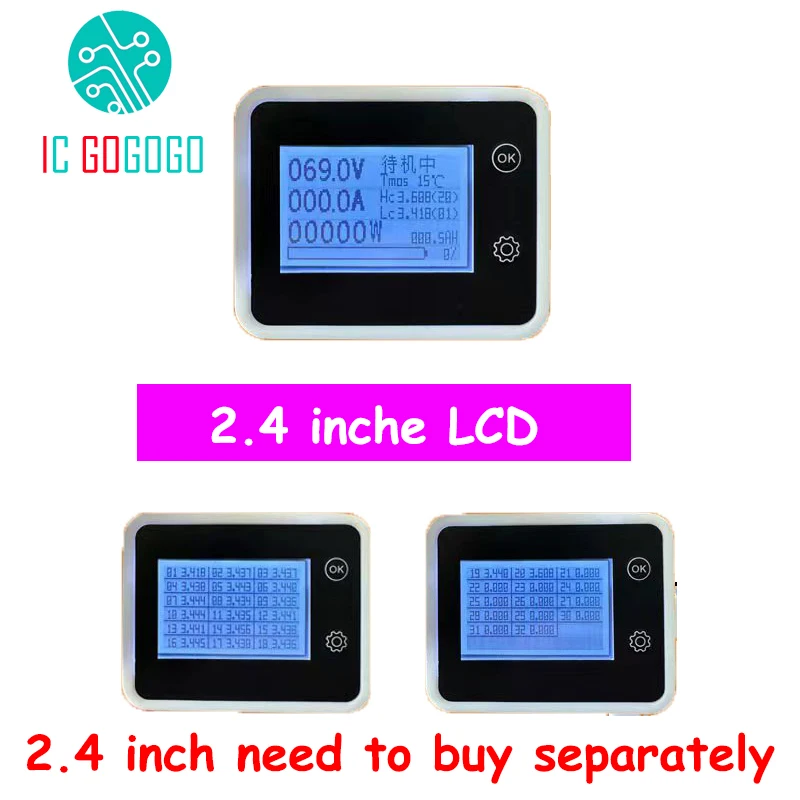

2.4 inch LCD: Only 2.4 inch LCD display screen . don't include BMS .

1.6 inch LCD: Only 1.6 inch LCD display screen . don't include BMS .

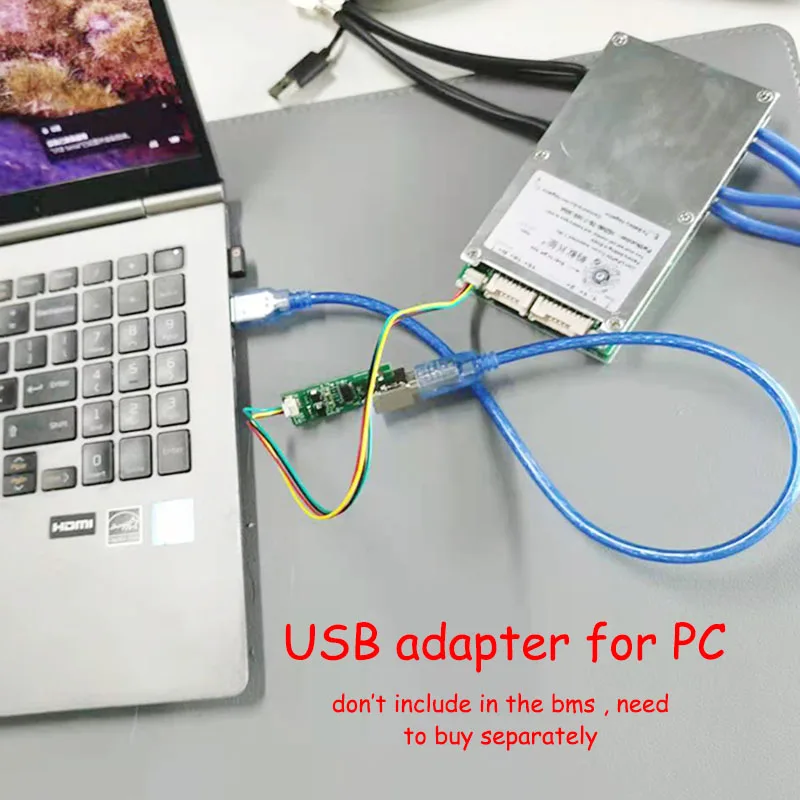

USB adapter for PC: Only USB adapter for PC computer . don't include BMS or LCD.

Applicable battery:

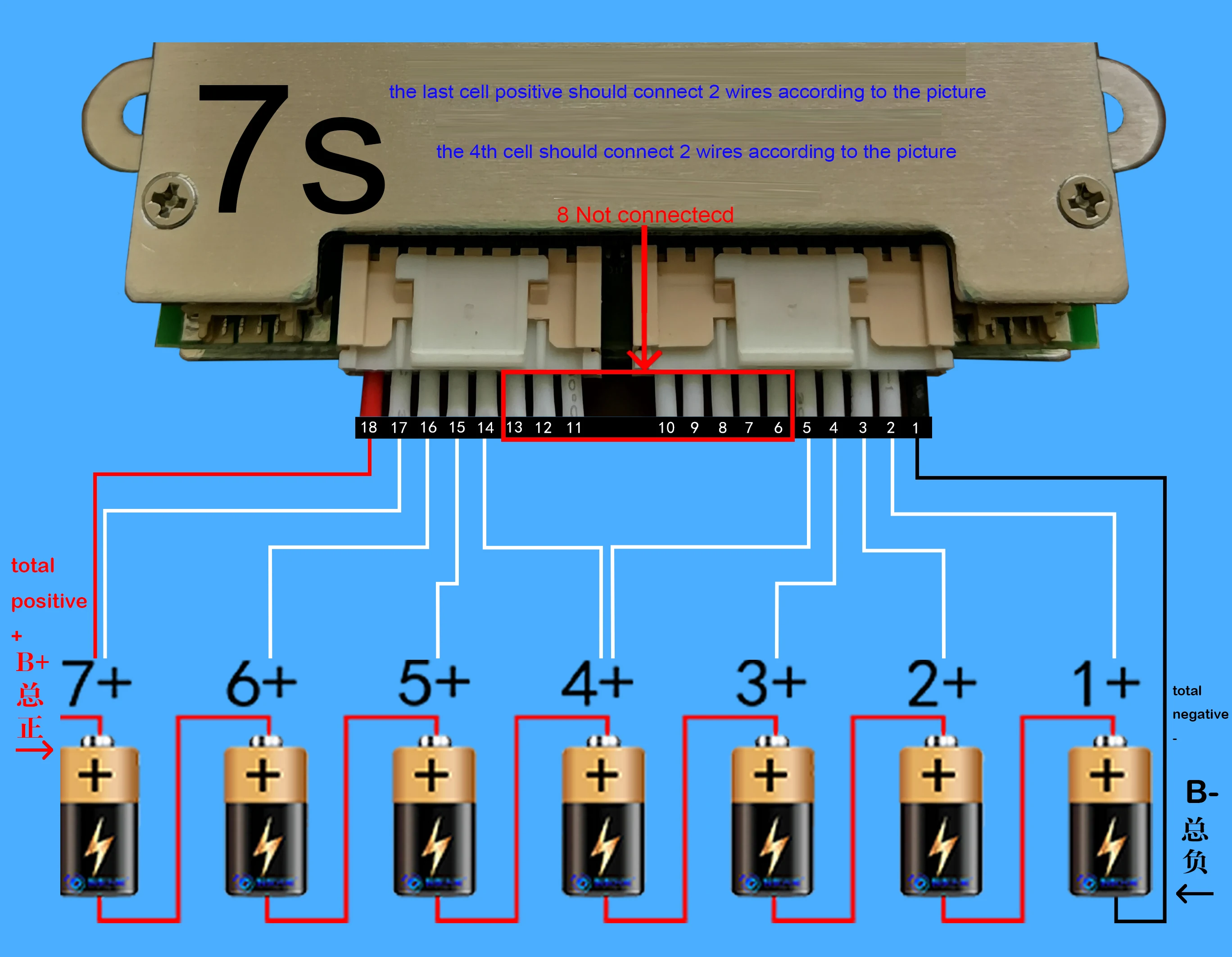

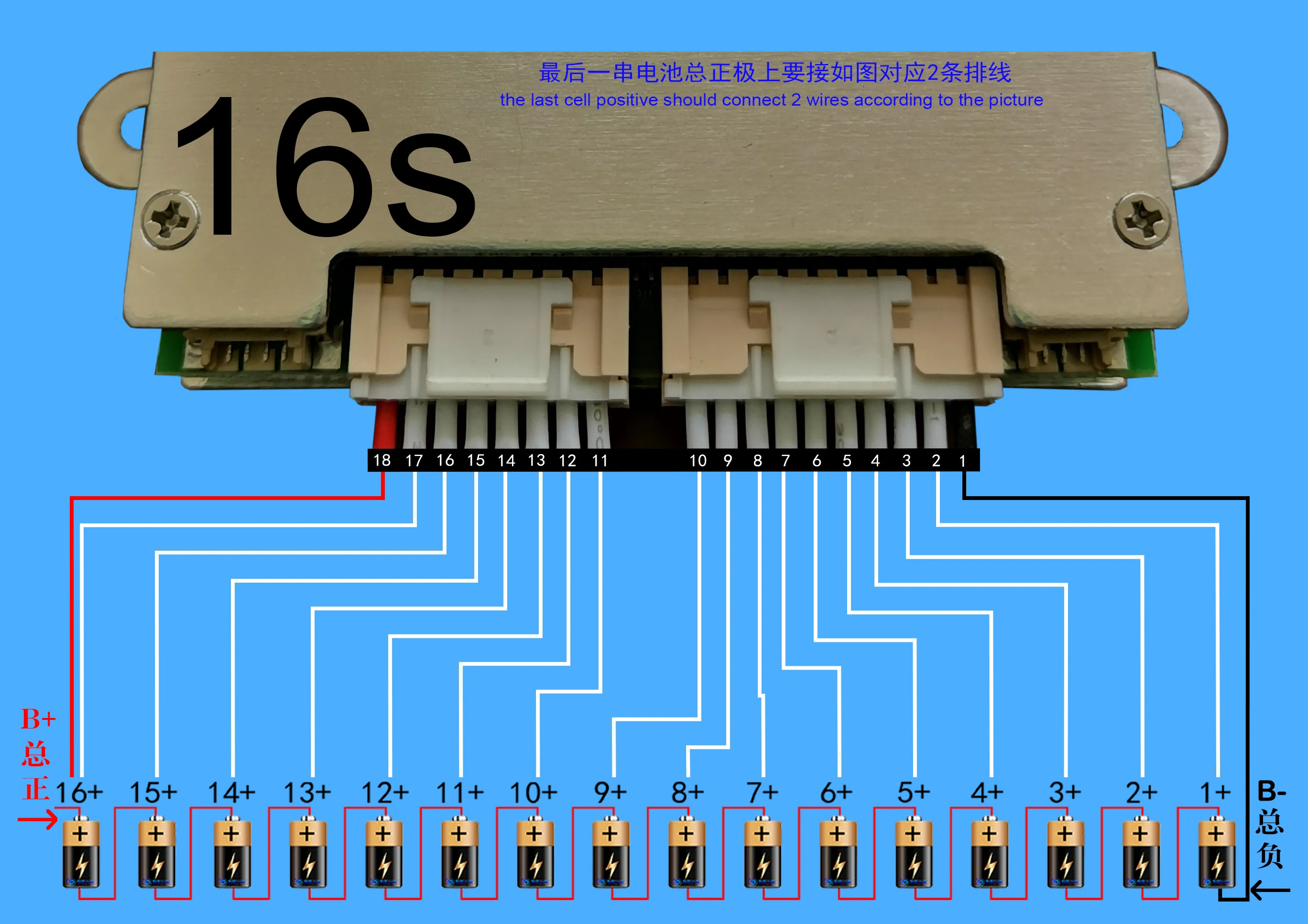

7S to -16S version ：
7-16S Li-ion Battery; 8-16S Lifepo4 Battery;8-16S Titanium LTO lithium

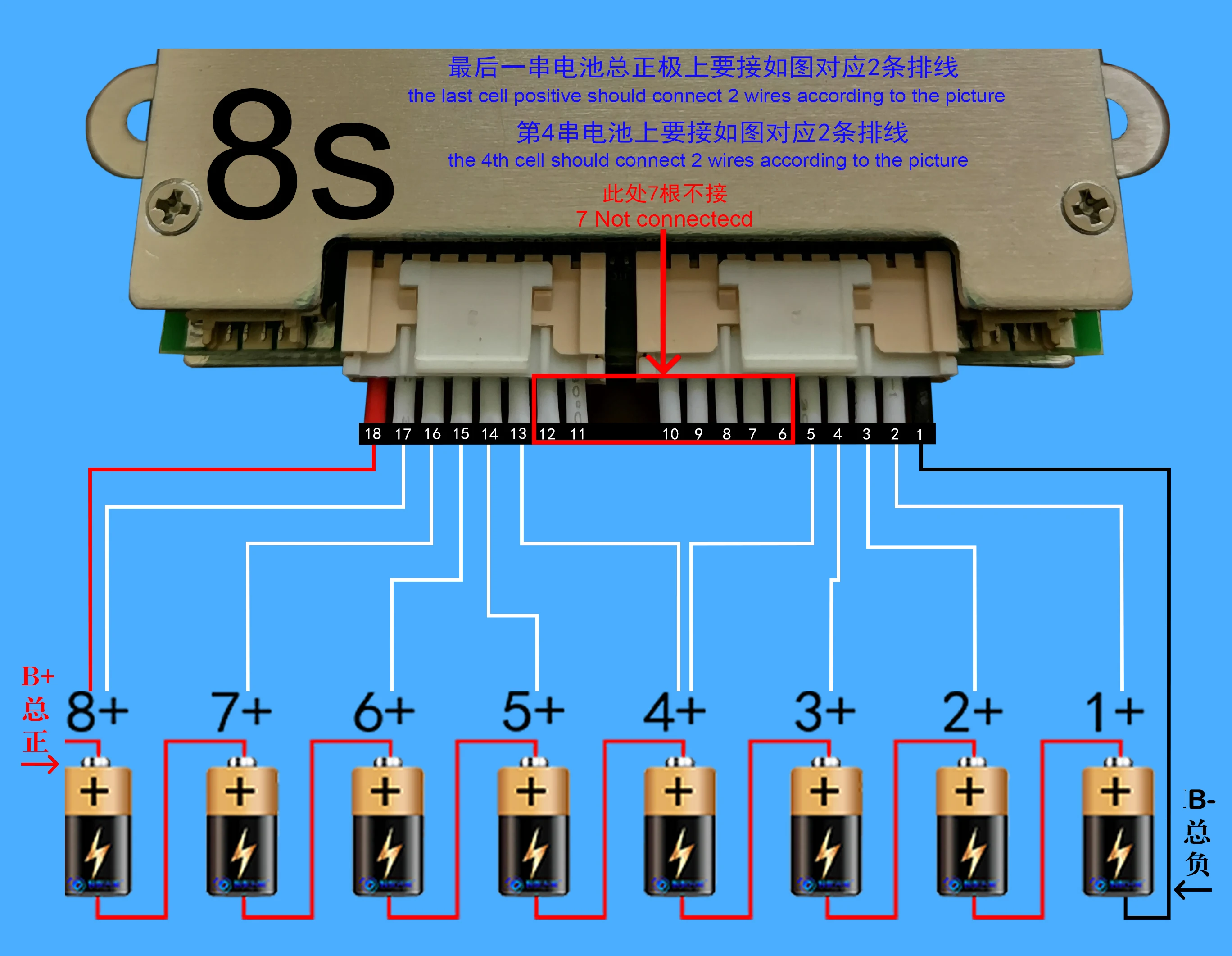

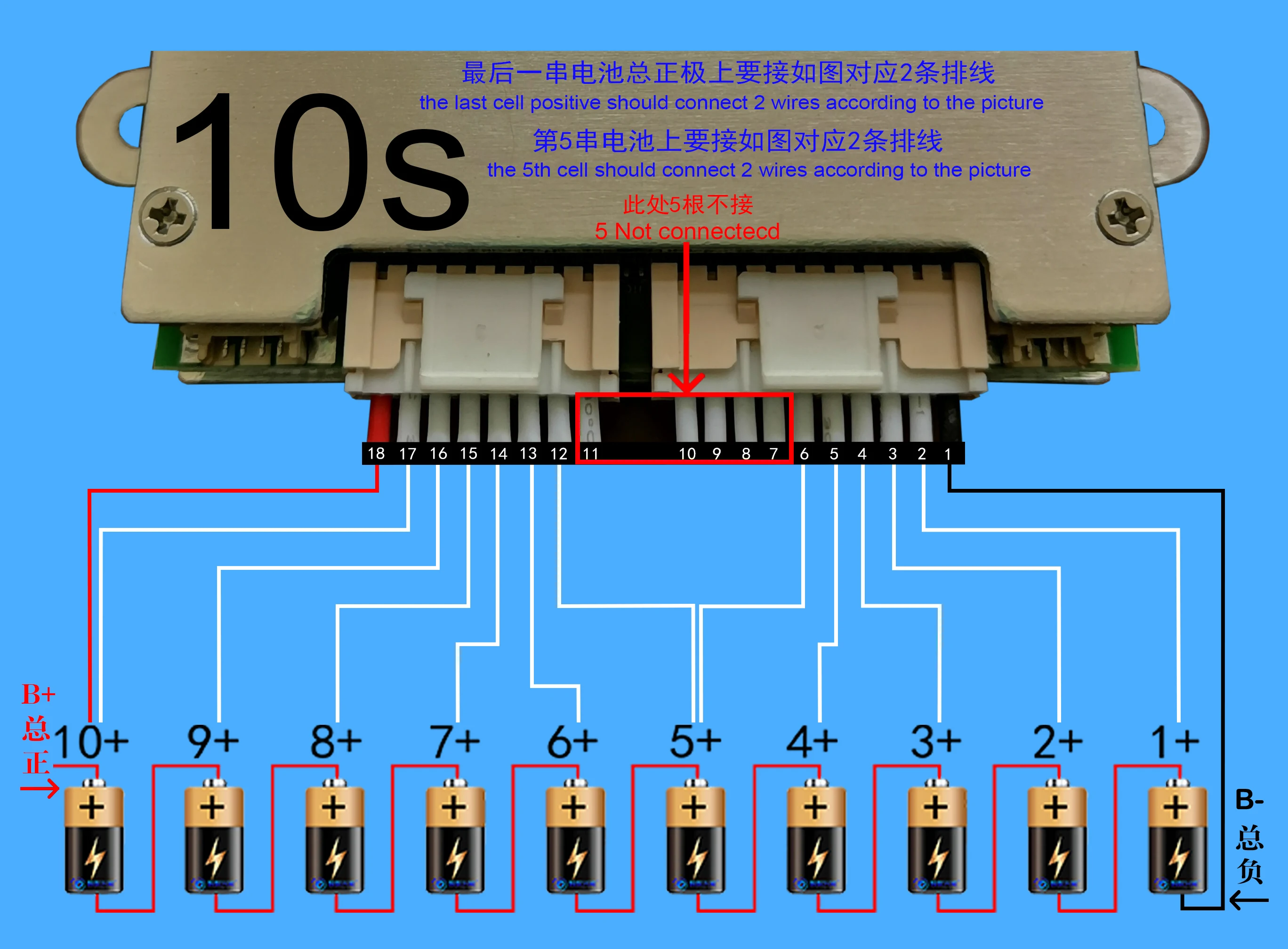

8S to 20S version :
8S to 20S Li-ion Battery; 8S to 20S Lifepo4 Battery; 8S to 20S LTO Battery.

8S to 22S version :
8S to 22S Li-ion Battery; 8S to 22S Lifepo4 Battery; 8S to 22S LTO Battery

17S to 24S version :

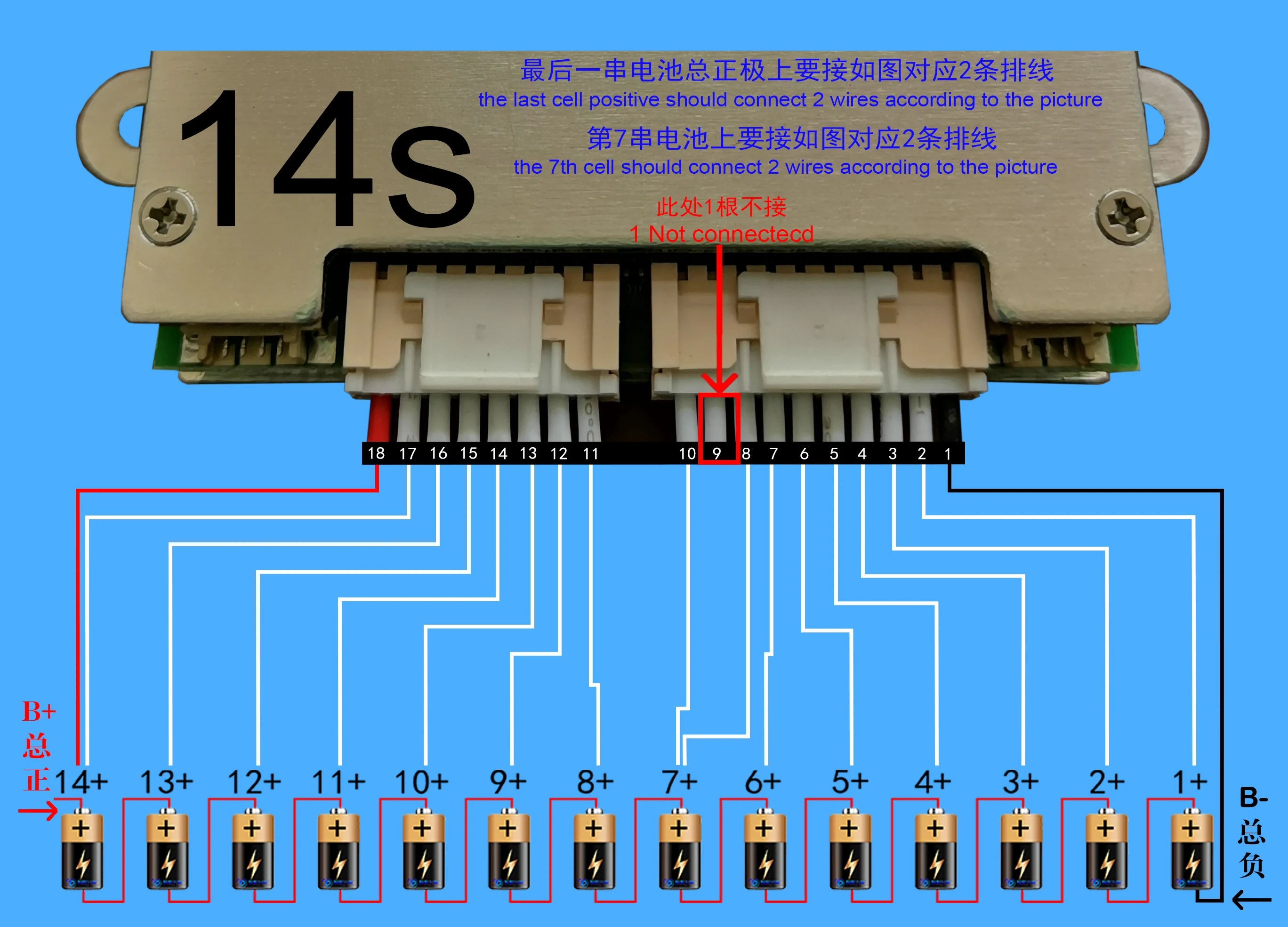

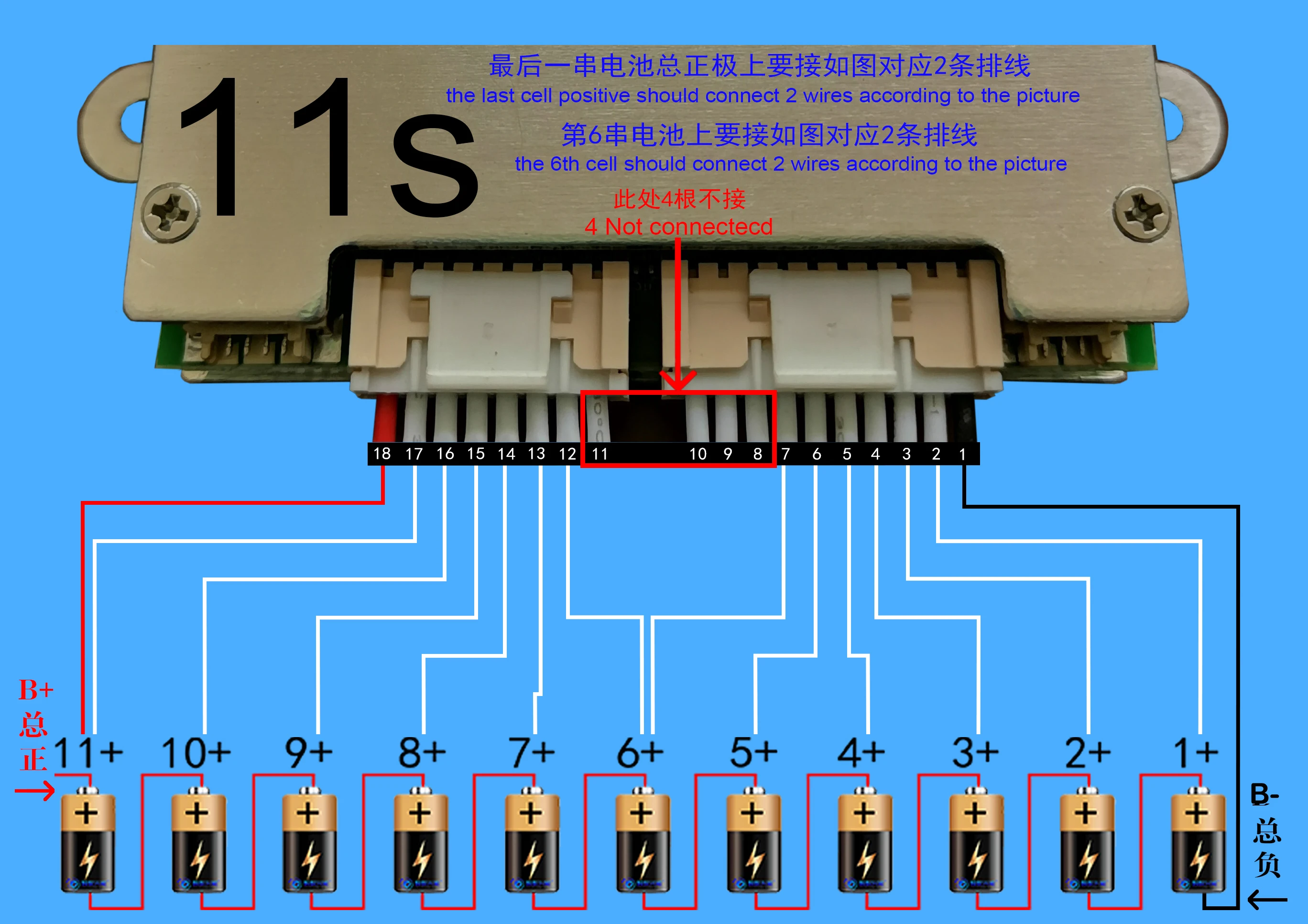

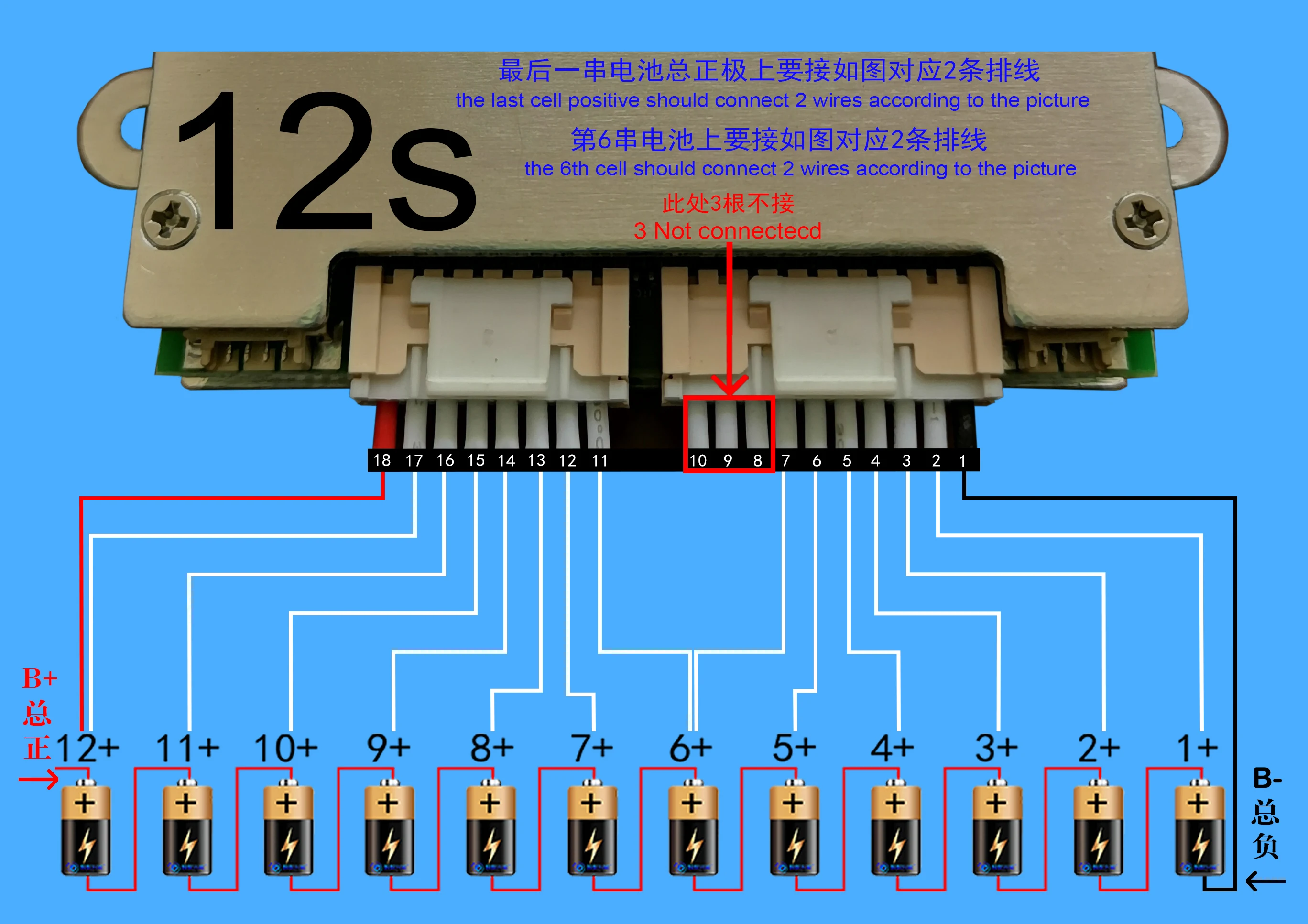

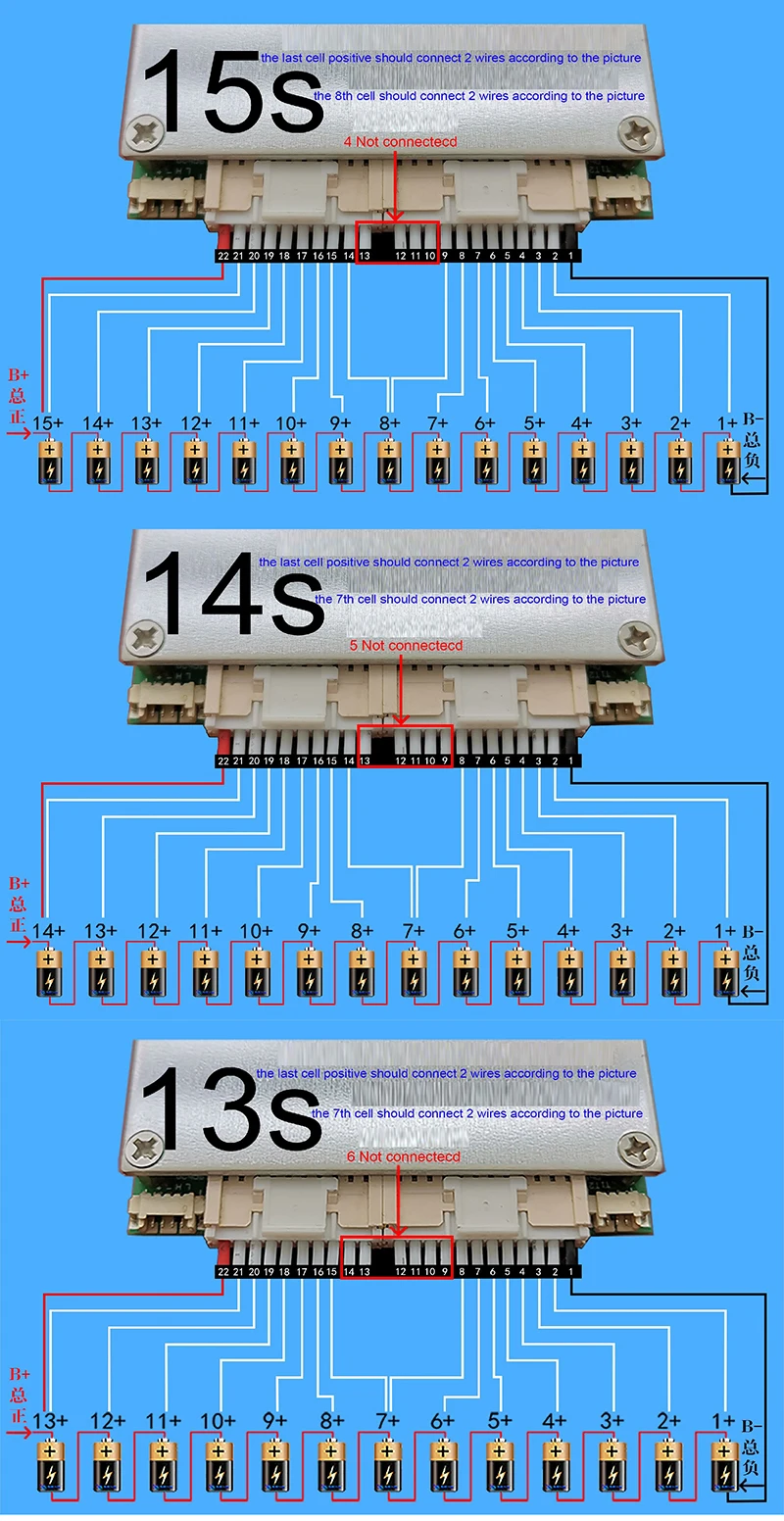

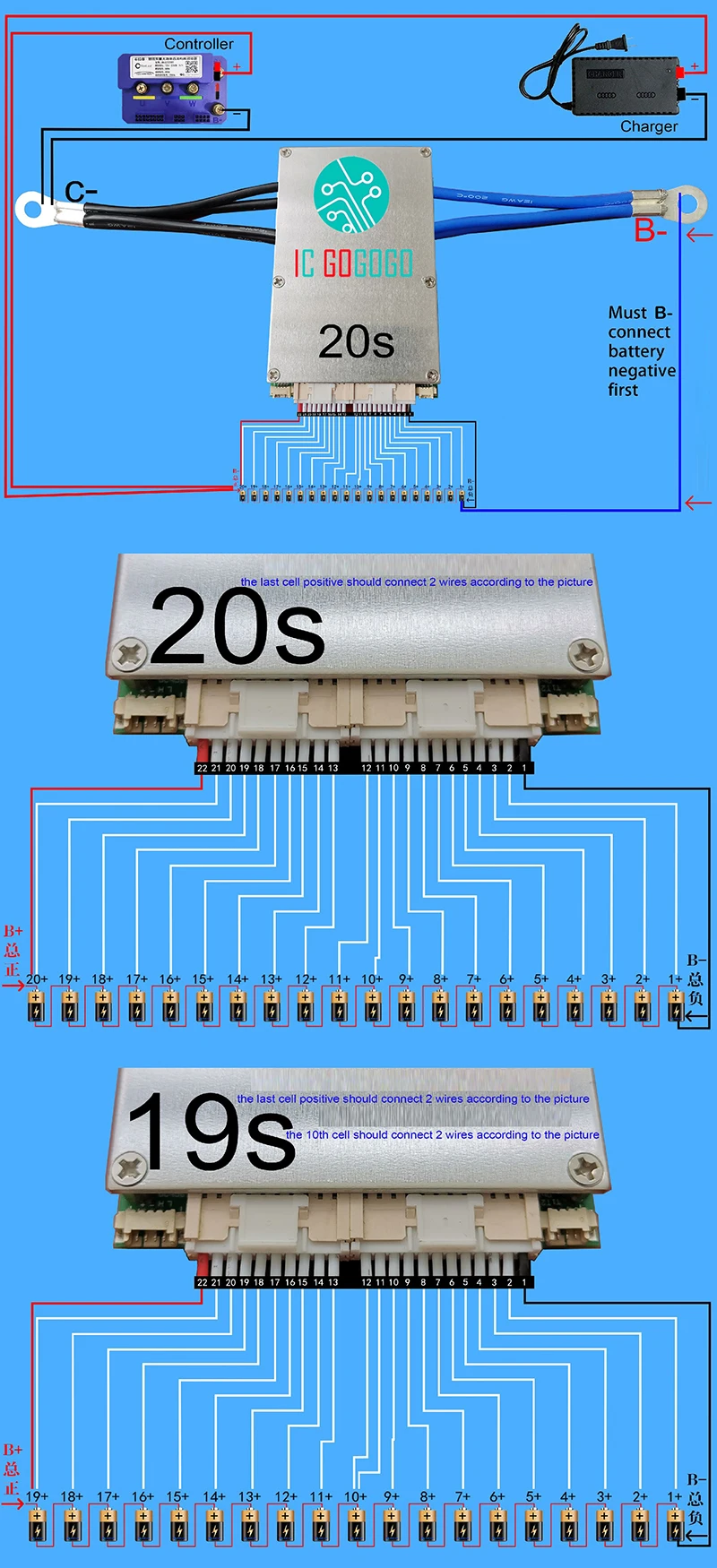

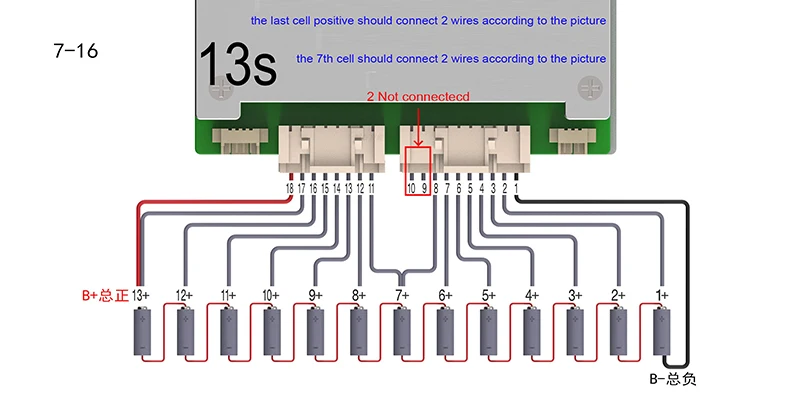

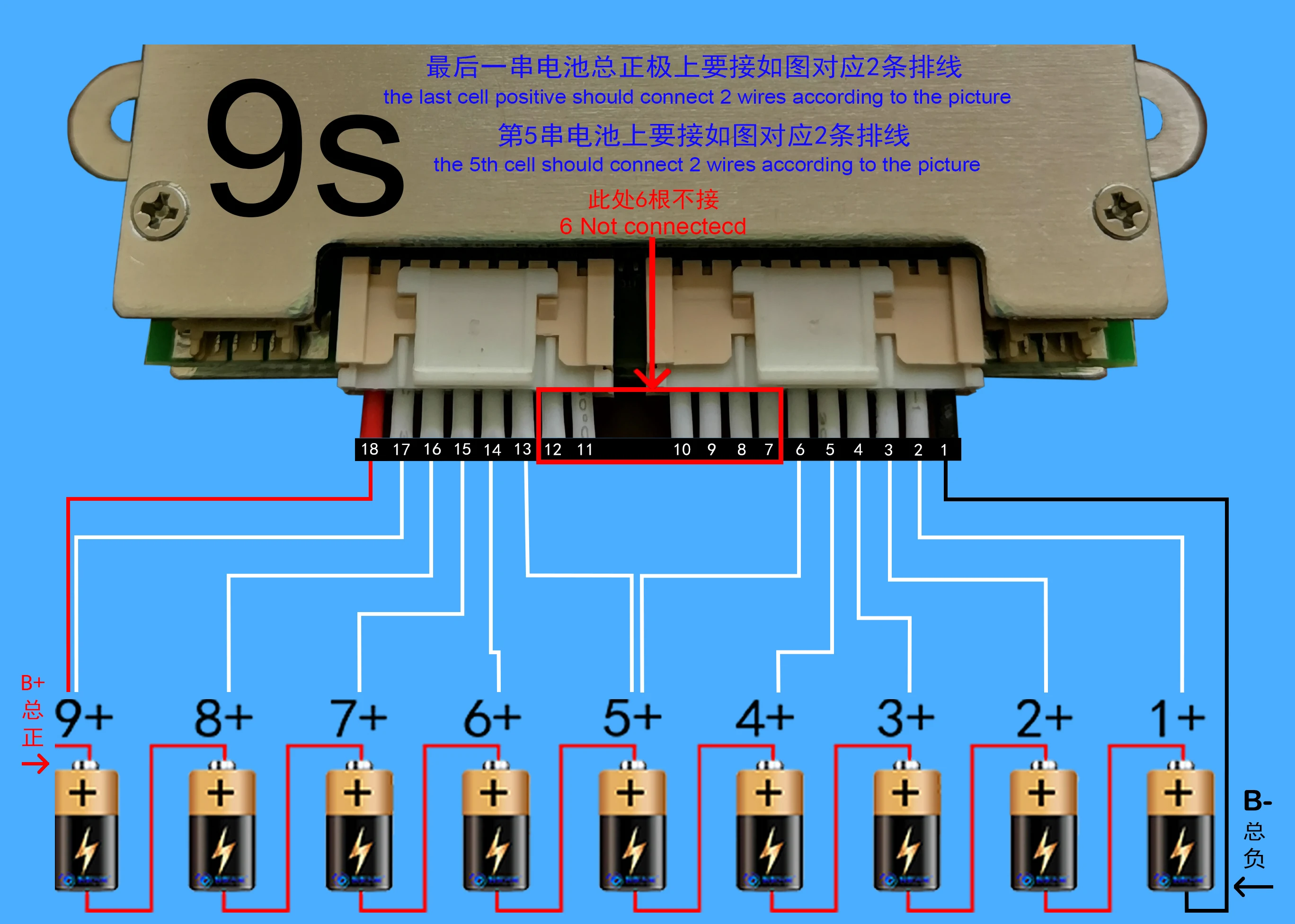

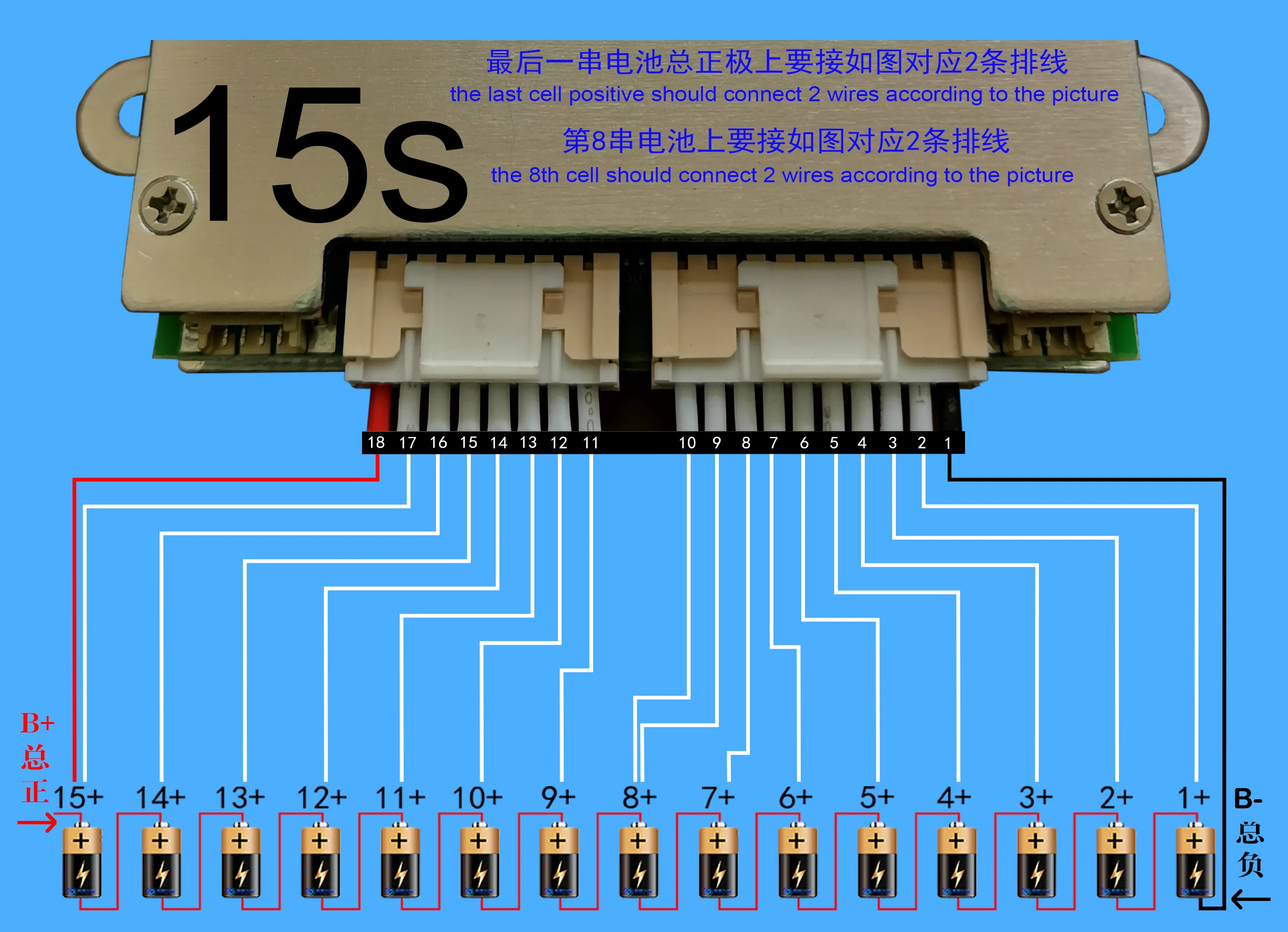

Lithium ion / Li-ion :13S-24S (connect 13S to 16S need to jumper wires ; connect 17S to 23S total positive + need to connect 3 wires )

Lithium iron phosphate / Lifepo4: 13S-24S (connect 13S to 16S need to jumper wires ; connect 17S to 23S total positive + need to connect 3 wires )

LTO titanate : 13S-24S (connect 13S to 16S need to jumper wires ; connect 17S to 23S total positive + need to connect 3 wires )

Sodium lithium Na+: 13S-24S (connect 13S to 16S need to jumper wires ; connect 17S to 23S total positive + need to connect 3 wires )

information

Charging current: 50A ( 500 ≥ version charge current can 100A )
Banlance current: 100MA
Wiring method: same port

Single cell voltage: detection range 1V-4.6V, accuracy less than 5Mv
Overcharged and paid: protected
Short circuit protection: short circuit protection current can be set
Bluetooth connection: for Android android hand sail
Coulomb counter: accurate calculation based on current versus time
Battery remaining capacity, error range is less than 5%
Power consumption: 3MA at work
1.5MA during standby

Customized RS485/CAN/modbus/Takeaway Leasing Tower , need to contact us to custom made before placing order :)
